Key Features |
| All
Teflon wetted parts model available. No seals.
Undamaged by over ranging. |
| |
| Applications |
| Wet
Benches Cooling Systems Corrosive Chemical Dispensing
Materials Consumption Measurement Process Controls
|
| |
| Features |
| |
No
Bearings |
| |
Single
Moving Part |
| |
In
Line Metering |
| |
No
Rotating internals |
| |
Materials:
Teflon , Brass or 316ss |
|
Output:
Analog or Digital |
|
Measures
Low Flows |
|
| |
|
| |
| Operation |
As
flow is established through the unit a magnetic piston
is displaced proportional to the volumetric flow rate.
A transducer senses the displacement of the piston
as flow increases and decreases. A conditioning circuit
converts the transducer signal to either an analog
or digital output.
|
| |
| |
Actuation
points for air at 68° F and 14.7 PSIA with increasing
flow. |
| |
Deactuation
(decreasing flow) averages 10% less than actuation
(increasing flow). |
| |
Flow
Setting accuracy ± 10% of actuation points shown |
|
Repeatability
± 2% |
|
Unit
will pass greater flows. |
| |
Teflon
encapsulated piston not available in 375-4 or
-5 |
|
|
| |
|
| Calibration
Range |
| Calibration
done using water. Corrections must be used for
other liquids. |
|
| Flow
and Pressure Loss Table |
| MODEL |
|
LINEAR
RANGE
ML / M (GPH) |
D
P
MBARS (PSID) |
Nominal
Output |
| |
|
|
|
-10
(VDC) |
20
(Hz) |
MAO-125-AA |
Minimum
Maximum |
20(0.32)
70(1.11) |
24.82
(0.36)
42.06 (0.61) |
1.43
5.00 |
57
200 |
MAO-125-BB |
Minimum
Maximum |
50(0.79)
150(2.38) |
8.27
(0.12)
10.34
(0.15) |
1.67
5.00 |
67
200 |
MAO-250-AA |
Minimum
Maximum |
100
(1.59)
500 (7.93) |
8.27
(0.12)
9.65 (0.14) |
1.00
5.00 |
40
200 |
MAO-250-BB |
Minimum
Maximum |
260
(4.12)
1800 (28.54) |
10.34
(0.15)
20.00
(0.29) |
0.69
5.00 |
28
200 |
|
|
| |
Mechanical
Specifications |
| MODEL |
WETTED
PARTS |
WEIGHT
LBS. (Kg) |
MAXIMUM
PRESSURE PSIG (BARG) |
MAO-125/250-T |
Teflon |
0.63
(0.29) |
80
(5.51) |
MAO-125/250-B |
Brass |
1.30
(0.59) |
1500
(103.4) |
MAO-125/250-S |
316
Stainless Steel |
1.30
(0.59) |
3000
(206.7) |
|
| |

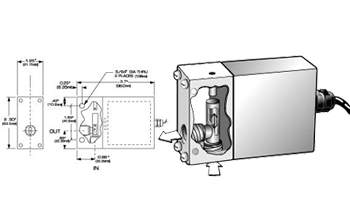

Fluid
Ports:
MAO-125: 1/8" FNPT
MAO-250: 1/4" FNPT |
Mounting:
MAO-125-AA Mount with Inlet vertical (inlet port up),
Outlet horizontal
MAO-125-BB (all other units) Mount with Inlet vertical
(Inlet port down), Outlet horizontal |
Temperature
Operating Range:
AMBIENT: 32° to 160° F (0° to 71° C)
MEDIA: 32° to 180° F (0° to 82° C) |
Performance:
N.O.: Conduit Offset Down
N.C.: Conduit Offset Up |
Installation:
(For
detailed information see Installation and Maintenance
Sheet.) Control valves should be placed downstream
of the MAO flow meter. The flow meter should never
be installed so that it drains completely when flow
ceases. A 10 micron filter is recommended. |
| |
| Electrical
Specifications |
Power Requirements:
VOLTAGE 12-18 VDC Regulated, ±10%
CURRENT 20 mA maximum |
Output:
ANALOG (PART No.-10) 0-5 VDC, 2 mA maximum load
-or-
DIGITAL (Part No.-20) Square Wave, 6.5 V peak to peak
200 Hz full scale or specify other.
TTL Available -
consult factory |
|
Load
Impedance:
2,500W to infinity
|
| Leads:
PVC Jacketed, 22 AWG 96", strain relief
|
|
Notes:
Calibration is performed using common ground. Calibration
with isolated power supply is available; please specify
when ordering. |
|
|
| |
|
|
