Key Features |
| Best
for Applications where the Ratio (Normal Flow/Set
Point) is 10:1 or Greater. Minimal Pressure
Drop. |
| |
| Applications |
| Analyzers
Welding Systems Vacuum Systems Cooling Systems
Chillers Biomedical Instruments Process Flows
|
| |
| Features |
| |
Broad
Range of Adjustability |
| |
Compact
Size |
| |
High
Resolution |
| |
Materials:
316ss, Brass, Teflon® |
| |
Confirms:
Normal Flow Conditions |
| |
Senses:
High Flow, Low Flow conditions |
| |
Output:
Switch Contact |
|
| |
|
| |
| Operation |

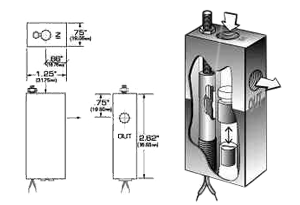

When
no flow is present the free magnetic piston is suspended
in the upper portion of the valve bore due to magnetic
repulsion between the lower fixed magnet and the piston.
As soon as flow is established the piston is displaced
downward and actuates the reed switch at the set point.
Set point is adjustable.
|
| |
| |
Actuation
Points for air at 68° F and 14.7 PSIA with
increasing flow |
| |
Deactuation
(decreasing flow) averages 30% less than actuation
(increasing flow) |
| |
Repeatability
±2% |
| |
Unit
will pass greater flows |
|
Corrections
must be made for other gases, line pressure and
temperatures. Please consult your representative
or the factory. |
| |
|
| Calibration
Range |
MODEL |
AIR
SCC/M (SCFH) |
WATER
ML/M (GPH) |
| |
MINIMUM |
MAXIMUM |
MINIMUM |
MAXIMUM |
125 |
30
(0.063) |
16,000
(33.90) |
1
(0.016) |
500
(7.93) |
|
| Pressure
Loss Table |
AIR
FLOW RATE
CC/M (SCFH) |
WATER
FLOW RATE
ML/M (GPH) |
DP
TO
ATMOSPHERE
MBARS
(Inches of Water) |
30
(0.064) |
1.0
(0.016) |
8.71
(3.50) |
| 310
(0.657) |
30
(0.48) |
25.8
(10.38) |
| 1500
(3.178) |
300
(4.76) |
29.7
(11.92) |
| 16,000
(33.9) |
500
(7.93) |
63.8
(25.63) |
|
| |
|
| Switch
Data |
SPST
Hermetically Sealed
Reed Switch |
SPDT
SPDT is not recommended for A/C |
Max
Switching Voltage
DC (V) 200
AC (V) 150 |
Max
Switching Voltage
DC (V) 100 |
Contact
Rating
DC (W) 50
AC (VA) 70 |
Contact
Rating
DC (W) 3 |
Max.
Switching Current
DC (A) 1.0
AC (A) 0.7 |
Max.
Switching Current
DC (A) .25 |
|
| Leads |
SPST
Leads 18 in. min. from body 22 AWG, TFE insulation. |
 |
SPDT
(optional)
Leads 18 in. min. from body 24 AWG, TFE insulation.
- green
- N.C.
- blue
- N.O.
- white
- Common
|
|
|
Above
values for resistive loads only. For inductive loads,
surge current and rush current -- contact protection
is required; consult your local representative. SPDT
unit not UL Recognized. |
| |
Specifications |
Unit |
Weight |
Working
Pressure |
Wetted
Parts |
Seals |
Teflon® |
4
(113.4) |
80
(5.52) |
Teflon® |
Teflon® |
Brass |
12
(340.2) |
1500
(103.42) |
Brass,
Epoxy |
Viton® |
316ss |
12
(340.2) |
3000
(206.84) |
316ss,
Epoxy |
Viton® |
|
| |
Fluid
Ports: Inlet/Outlet
1/8" FNPT |
Temperature
Operating Range: 32°
to 220° F (0° to 104° C). For other temperature
ranges, consult factory. |
Installation:
Mount
vertically with the inlet port up vertically. Other
attitudes change the adjustable range of the unit.
A 10 micron fliter is recommended. |
|
|
|
|
