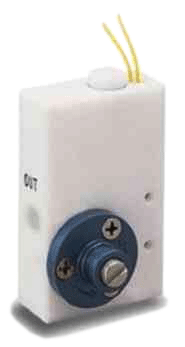

Key Features |
| Best
for Applications where the Ratio (Normal Flow/Set
Point) is 10:1 or less. |
| |
| Applications |
| Vacuum
Systems Wet Stations Gas Analyzers Cooling Systems
Industrial Fluid Lines |
| |
| Features |
| |
Broad
Range of Adjustability |
| |
Compact
Size |
| |
High
Resolution |
| |
Close
On-Off Differential |
| |
Ease
of Customer Setting |
| |
Monitors
Gases or Liquids |
| |
Materials:
316ss, Brass, Teflon® |
|
Confirms:
Normal Flow Conditions |
|
Senses:
High Flow, Low Flow conditions |
|
Output:
Switch Contact |
| |
|
|
| |
|
| |
| Operation |

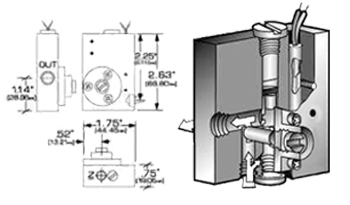

When
no flow is present the free magnetic piston rests
on the bottom of the bore, which is situated in a
bypass off the main line. Adjustment of the variable
orifice in the main line creates a small bypass flow
sufficient to lift the magnetic piston and actuate
the reed switch. When flow decreases, the piston moves
downward and the reed switch deactuates.
|
| |
| |
Actuation
Points for air at 68° F and 14.7 PSIA with increasing
flow |
| |
Deactuation
(decreasing flow) averages 10% less than actuation
(increasing flow) |
| |
Repeatability
±2% |
| |
Unit
will pass greater flows |
|
Corrections
must be made for other gases, line pressure and
temperatures. Please consult your representative
or the factory. |
| |
|
| Calibration
Range |
MODEL |
AIR
SCC/M (SCFH) |
WATER
ML/M (GPH) |
| |
MINIMUM |
MAXIMUM |
MINIMUM |
MAXIMUM |
125-BP |
100
(0.21) |
20,000
(42.4) |
3
(0.048) |
500
(7.95) |
| 125-BPHF |
200
(0.42) |
60,000
(127)* |
5
(0.079) |
950
(15.105) |
|
| Pressure
Loss Table |
AIR
FLOW RATE
CC/M (SCFH) |
WATER
FLOW RATE
ML/M (GPH) |
DP
TO
ATMOSPHERE
MBARS
(Inches of Water) |
100
(0.21) |
3.00
(0.048) |
1.2
(0.50) |
| 5500
(11.7) |
200
(3.17) |
9.2
(3.71) |
| 7000
(14.8) |
400
(6.34) |
11.7
(4.71) |
| 20,000
(42.4) |
500
(7.93) |
24.7
(9.93) |
| 60,000
(127.1) |
950
(15.10) |
69.7
(28.00) |
|
| |
|
| Switch
Data |
SPST
Hermetically Sealed Reed Switch |
SPDT
SPDT is not recommended for A/C |
Max
Switching Voltage DC (V) 200 AC (V) 150 |
Max
Switching Voltage DC (V) 100 |
Contact
Rating DC (W) 50 AC (VA) 70 |
Contact
Rating DC (W) 3 |
Max.
Switching Current DC (A) 1.0 AC (A) 0.7 |
Max.
Switching Current DC (A) .25 |
|
| Leads |
SPST
Leads 18 in. min. from body 22 AWG, TFE insulation. |
 |
SPDT
(optional)
Leads 18 in. min. from body 24 AWG, TFE insulation.
- green
- N.C.
- blue
- N.O.
- white
- Common
|
|
|
Above
values for resistive loads only. For inductive loads,
surge current and rush current -- contact protection
is required; consult your local representative. SPDT
unit not UL Recognized. |
| |
Specifications |
Unit |
Weight
oz. (gm) |
Working
Pressure PSIG (BARG) |
Wetted
Parts |
Seals |
| Teflon® |
4.4
(123.5) |
100
(6.89) |
Teflon® |
Teflon® |
Brass |
16
(453.6) |
1500
(103.42) |
Brass,
TFE, Epoxy |
Viton® |
316ss |
16
(453.6) |
3000
(206.84) |
316ss,
TFE, Epoxy |
Viton® |
|
| |
Fluid
Ports: Inlet/Outlet
1/8" FNPT |
Electrical
Conduit Optional:Inlet/Outlet
1/8" FNPT |
Temperature
Operating Range: 32° to 220° F (0° to 104° C). For other temperature ranges, consult factory. |
Installation:
Mount vertically with the inlet port at bottom. A 10 micron fliter is recommended. |
|
|
|
|
