Key Features |
| Best
for applications where the normal flow to set
point is 10:1 or greater. |
| |
| Applications |
| Process
Media Fire Control Systems Cooling Systems Heat
Pumps Hydraulic Lifts Water Treatment Chemicals
|
| |
| Features |
| |
Adjustable
Flow Monitor |
| |
Monitors
both Gases and Liquids |
| |
Materials:
Brass or 316ss |
| |
Confirms:
Normal flow conditions |
| |
Senses:
High flow or Low flow conditions |
| |
Output:
Switch Contact |
| |
|
|
| |
|
| |
| Operation |
When
flow is increased, the magnetic piston is forced against
a bias spring. As the magnet comes near the adjustable
read switch it actuates, indicating proper flow. When
flow decreases the spring forces the piston in the
opposite direction deactuating the reed switch and
indicating a reduced or no flow situation.
|
| |
| |
Actuation
points for air at 68 F and 14.7 PSIA with increasing
flow. |
| |
Deactuation
(decreasing flow) averages 40% less than actuation
(increasing flow). |
| |
Repeatability
±2% |
| |
Unit
will pass greater flows |
|
Corrections
must be made for other gases, line pressure and
temperatures. Please consult your representative
or the factory. |
| |
|
| Calibration Range |
| MODEL |
AIR
SLPM (SCFM) |
WATER
LPM (GPM) |
INLET/
OUTLET |
| |
MINIMUM |
MAXIMUM |
MINIMUM |
MAXIMUM |
|
FAV-250 |
14.16
(0.5) |
1416
(50) |
0.38
(0.1) |
15.14
( 4.0) |
1/4" |
FAV-375 |
14.16
(0.5) |
1416
(50) |
0.38
(0.1) |
15.14
( 4.0) |
3/8" |
FAV-500 |
28.32
(1.0) |
2124
(75) |
1.89
(0.5) |
37.85
(10.0) |
1/2" |
FAV-750 |
141.60
(5.0) |
3398
(120) |
3.78
(1.0) |
75.70
(20.0) |
3/4" |
|
Pressure Loss Table |
| |
AIR
FLOW RATE
SCPM (SLFM) |
WATER
FLOW RATE
LPM (GPM) |
DP
TO
ATMOSPHERE
MBARS
(PSID) |
| FAV
250/375 |
| Minimum |
14.2
(0.50) |
0.38
(0.1) |
0.034
(0.50) |
| Maximum |
1416.0
(50.00) |
15.14
(4.0) |
0.21
(3.00) |
| FAV
500 |
| Minimum |
28.32
(1.00) |
1.89
(0.50) |
0.069
(1.00) |
| Maximum |
2124.0
(75.00) |
37.85
(10.00) |
0.69
(10.00) |
| FAV
750 |
| Minimum |
141.6
(5.00) |
3.78
(1.00) |
0.10
(1.50) |
| Maximum |
3398.0
(120.00) |
75.70
(20.00) |
0.62
(9.00) |
|
| |
|
| Switch
Data |
SPST
Hermetically Sealed Reed Switch |
SPDT
SPDT is not recommended for A/C |
Max
Switching Voltage DC (V) 200 AC (V) 150 |
Max
Switching Voltage DC (V) 100 |
Contact
Rating DC (W) 50 AC (VA) 70 |
Contact
Rating DC (W) 3 |
Max.
Switching Current DC (A) 1.0 AC (A) 0.7 |
Max.
Switching Current DC (A) .25 |
|
| Leads |
SPST
Leads 18 in. min. from body 22 E 19, TFE insulation. |
 |
SPDT
(optional) Leads 18 in. min. from body 24 E
19, TFE insulation.
- green
- N.C.
- blue
- N.O.
- white
- Common
|
|
|
Above
values for resistive loads only. For inductive loads,
surge current and rush current -- contact protection
is required; consult your local representative. SPDT
unit not UL Recognized. |
| |
Specifications |
Unit |
Weight
Lbs (Grams) |
Working
Pressure PSIG (BARG) |
Wetted
Parts |
Seals |
| FAV-250-ESB |
1.4
(635) |
1500
(103.42) |
Brass,
Epoxy 316ss |
Viton® |
FAV-250-ESS |
1.4
(635) |
3000
(206.84) |
316ss,
Epoxy |
Viton® |
FAV-375-ESB |
1.4
(635) |
1500
(103.42) |
Brass,
Epoxy 316ss |
Viton® |
FAV-375-ESS |
1.4
(635) |
3000
(206.84) |
316ss,
Epoxy |
Viton® |
FAV-500-ESB |
1.4
(635) |
1500
(103.42) |
Brass,
Epoxy 316ss |
Viton® |
FAV-500-ESS |
1.4
(635) |
3000
(206.84) |
316ss,
Epoxy |
Viton® |
FAV-750-ESB |
1.7
(771) |
1500
(103.42) |
Brass,
Epoxy 316ss |
Viton® |
FAV-750-ESS |
1.7
(771) |
3000
(206.84) |
316ss,
Epoxy |
Viton® |
|
| |

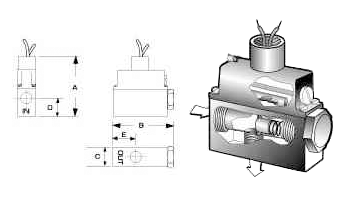

| Dimensions
Inches (mm) |
| SIZE |
A |
B |
C |
D |
E |
| FAV-250 |
3.25
(82.6) |
3.25
(82.6) |
1.00
(25.4) |
1.00
(25.4) |
1.25
(31.8) |
| FAV-375 |
3.25
(82.6) |
3.25
(82.6) |
1.00
(25.4) |
1.00
(25.4) |
1.25
(31.8) |
| FAV-500 |
3.25
(82.6) |
3.25
(82.6) |
1.00
(25.4) |
1.00
(25.4) |
1.25
(31.8) |
| FAV-750 |
3.97
(100.8) |
4.28
(108.7) |
1.25
(31.8) |
1.63
(41.4) |
1.63
(41.4) |
|
| |
|
|
|
|
