Key Features |
| Economical,
Best for loss of flow detection |
| |
| Applications |
| Machine
Lubrication Process Flows Cooling Systems Water
Treatment Systems |
| |
| Features |
| |
Adjustable |
| |
Confirms:
Normal flow conditions |
| |
Senses:
high flow or low flow conditions |
| |
Output:
Switch Contact |
|
|
| Operation |
When
flow is increased, the magnetic piston is forced against
a bias spring. As the magnet comes near the adjustable
read switch it actuates, indicating proper flow. When
flow decreases the spring forces the piston in the
opposite direction deactuating the reed switch an
indicating a reduced or no flow situation.
|
| |
| |
All
models field adjustable |
| |
Deactuation
(decreasing flow) averages 40% less than actuation
(increasing flow). |
| |
Repeatability
±2% |
|
Correction
must be made for attitudes other than horizontal. |
| |
Unit
will pass greater flows |
|
Corrections
must be made for other gases, line pressure and
temperatures. Please consult your representative
or the factory. |
| |
|
| Calibration
Range |
| MODEL |
ADJUSTABLE
RANGE INCREASING FLOW WATER LPM (GPM) |
FACTORY
PRESET FOR DECREASING FLOW WATER LPM(GPM)* |
INLET/
OUTLET FNPT PORT Inches |
LCA-250 |
0.38-15.1
(0.10 - 4.00) |
-10
0.38 (0.10)
-20 9.46 (2.50)
-30 11.46 (3.00) |
1/4" |
LCA-375 |
1.89-15.1
(0.50 - 4.00) |
-10
1.89 (0.50)
-20 9.46 (2.50)
-30 11.46 (3.00) |
3/8" |
LCA-500 |
1.89-37.9
(0.50 - 10.00) |
-10
1.89 (0.50)
-20 18.93 (5.00)
-30 28.39 (7.50) |
1/2" |
LCA-750 |
3.79-56.8
(1.00 - 15.00) |
-10
3.79 (1.00)
-20 18.93 (5.00)
-30 28.39 (7.50) |
3/4" |
|
Pressure
Loss Table |
| |
WATER
FLOW RATE LPM (GPM) |
P
BARD (PSID) |
| LCA
250/375 |
| Minimum |
0.38
(0.10) |
0.34
(0.5) |
| Maximum |
15.14
(4.0) |
0.21
(3.0) |
| LCA
500 |
| Minimum |
1.89
(0.5) |
0.069
(1.0) |
| Maximum |
37.85
(10.0) |
0.689
(10.0) |
| LCA
750 |
| Minimum |
3.79
(1.0) |
0.10
(1.5) |
| Maximum |
56.8
(15.0) |
0.62
(9.0) |
|
| |
|
| Switch
Data |
SPST
Hermetically Sealed Reed Switch |
SPDT
SPDT is not recommended for A/C |
Max
Switching Voltage DC (V) 200 AC (V) 150 |
Max
Switching Voltage DC (V) 100 |
Contact
Rating DC (W) 50 AC (VA) 70 |
Contact
Rating DC (W) 3 |
Max.
Switching Current DC (A) 1.0 AC (A) 0.7 |
Max.
Switching Current DC (A) .25 |
|
| Leads |
SPST
Leads 24 in. min. from body 22 AWG, PVC Red
Black Jacketed Wire. |
|
SPDT
(optional) Leads 24 in. min. from body 24 AWG,
PVC Jacketed Wire
- green
- N.C.
- red
- N.O.
- black
- Common
|
|
|
Above
values for resistive loads only. For inductive loads,
surge current and rush current -- contact protection
is required; consult your local representative. SPDT
unit not UL Recognized. |
| |
Specifications |
| Unit |
Weight
Lbs. (Kg.) |
Max.
Working Pressure |
Wetted
Parts
|
| LCA-250 |
.375
(.17) |
100
(6.89) |
PVC |
LCA-375 |
.375
(.17) |
100
(6.89) |
|
LCA-500 |
.375
(.17) |
100
(6.89) |
Epoxy |
LCA-750 |
.625
(.283) |
100
(6.89) |
316ss |
|
| |
Fluid
Ports: See
Calibration Chart. |
Temperature
Operating Range: PVC:
32° to 120° F, Brass: 32 to 220° F, 316ss: 32 to 220°
F, Acrylic: 32 to 160° F. |
Installation:
Mount
with the inlet port on the side horizontally. Other
attitudes change the adjustable range of the unit.
A 100 micron fliter is recommended. |
| |

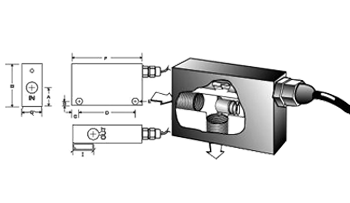

| Dimensions
Inches (mm) |
| SIZE |
A |
B |
C |
D |
E |
F |
G |
H |
I |
| LCA-250 |
1.00
(25.4) |
0.30
(7.62) |
0.38
(9.65) |
2.25
(57.15) |
9/32
(7.14) |
3.0
(76.2) |
1.00
(25.4) |
2.00
(50.8) |
1.25
(31.8) |
| LCA-375 |
1.00
(25.4) |
0.30
(7.62) |
0.38
(9.65) |
2.25
(57.15) |
9/32
(7.14) |
3.0
(76.2) |
1.00
(25.4) |
2.00
(50.8) |
1.25
(31.8) |
| LCA-500 |
1.00
(25.4) |
0.30
(7.62) |
0.38
(9.65) |
2.25
(57.15) |
9/32
(7.14) |
3.0
(76.2) |
1.00
(25.4) |
2.00
(50.8) |
1.25
(31.8) |
| LCA-750 |
1.63
(41.4) |
0.30
(7.62) |
0.38
(9.65) |
3.25
(82.55) |
9/32
(7.14) |
4.0
(101.6) |
1.25
(31.8) |
2.75
(69.9) |
1.63
(41.4) |
|
| |
|
|
|
|
