Key Features |
| All Teflon wetted parts model available. No seals. Undamaged by over ranging. |
| |
| Applications |
| Wet Benches
Cooling Systems
Corrosive Chemical Dispensing
Materials Consumption Measurement
Process Controls
|
| |
| Features |
| |
No Bearings |
| |
Single Moving Part |
| |
In Line Metering |
| |
No Rotating internals |
| |
Materials: Teflon , Brass or 316ss |
|
Output: Analog or Digital |
|
Measures
Low Flows |
|
| |
|
| |
| Operation |
As flow is established through the unit a magnetic piston is displaced proportional to the volumetric flow rate. A transducer senses the displacement of the piston as flow increases and decreases. A conditioning circuit converts the transducer signal to either an analog or digital output.
|
| |
|
|
| |
|
| Calibration
Range |
| Calibration done using water. Corrections must be used for other liquids. |
|
| Flow
and Pressure Loss Table |
| MODEL |
|
LINEAR
RANGE
LPM (GPM) |
D
P MBARS (PSID) |
Nominal
Output |
| |
|
|
|
-10
(VDC) |
20
(Hz) |
MAO-500-AA |
Minimum
Maximum |
1.89
(0.5) 7.57 (2.0) |
27.58
(0.40) 31.03 (0.45) |
1.25
5.00 |
50
200 |
MAO-500-BB |
Minimum
Maximum |
3.79
(1.0) 13.25 (3.5) |
27.58
(0.40) 68.95 (1.0) |
1.43
5.00 |
57
200 |
|
|
| |
Mechanical
Specifications |
| MODEL |
WETTED
PARTS |
WEIGHT
LBS. (Kg) |
MAXIMUM
PRESSURE PSIG (BARG) |
MAO-500-T |
Teflon® |
1.3 (0.6) |
80 (5.52) |
MAO-500-B |
Brass |
3.4 (1.54) |
1500 (103.42) |
MAO-500-S |
316
Stainless Steel |
3.4 (1.54) |
3000 (206.84) |
|
| |
|

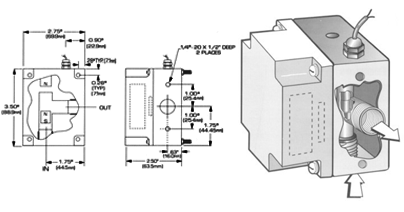

Fluid
Ports:
MAO-500: 1/2" FNPT
|
Mounting:
MAO-500: Mount with Inlet vertical (Inlet port down), Outlet horizontal |
Temperature
Operating Range:
AMBIENT: 32° to 140° F (0° to 60° C)
MEDIA: 32° to 140° F (0° to 60° C) |
Performance:
REPEATABILITY: ± 3% full scale
LINEARITY: ± 4% full scale
TOTAL ACCURACY: ± 10% |
Installation:
(For detailed information see Installation and Maintenance Sheet.) Control valves should be placed downstream of the MAO flow meter. The flow meter should never be installed so that it drains completely when flow ceases. A 10 micron filter is recommended. |
| |
| Electrical
Specifications |
Power Requirements:
VOLTAGE 12-18 VDC Regulated, ±10%
CURRENT 20 mA maximum |
Output:
ANALOG (PART No.-10) 0-5 VDC, 2 mA maximum load
-or-
DIGITAL (Part No.-20) Square Wave, 6.5 V peak to peak
200 Hz full scale or specify other.
TTL Available -
consult factory |
|
Load
Impedance:
2,500W to infinity
|
| Leads:
PVC Jacketed, 22 AWG 96", strain relief
|
|
Notes:
Calibration is performed using common ground.
Calibration with isolated power supply is available; please specify when ordering |
|
|
|
|
|
