Air Driven Liquid Pumps

Haskel Air Driven Liquid Pumps

Haskel air driven pumps offer many advantages over conventional electrical driven units as follows:

  • Ability to install at any predetermined pressure and hold this fixed pressure without consuming power or generating heat.
  • No heat, flame or spark risk.
  • Infinitely variable cycling speed output.
  • Up to 100,000 psi (7,000 bar) pressure capability.
  • No limit or adverse effect to continuous stop/start applications.
  • Air drive does not require an external line lubricator thus saving on running cost and preventing oil vapor contamination of the surrounding environment.
  • Reliable, easy to maintain, compact and robust.

Key Features:

  • Wide range of modifications and control options.
  • Noise reduction kits for selected models.
  • Unbalanced cycling spool provides immediate operation in response to output pressure change.
  • Suitable for large variety of liquids and liquefied gases.
  • Bottled gas, boil off from a liquefied tank or natural gas can be used as an alternative to air drive.
  • Range of standard and specially built systems.
  • Ability to design and manufacture systems to customer specifications.

Standard Models

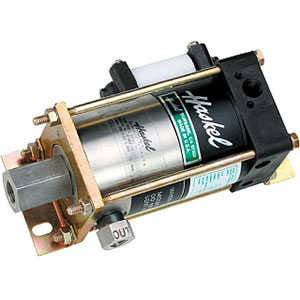

1/3 HP Air Driven Liquid Pump

1/3 HP

Pressures to 15,000 psi
Flow rates to 3 gpm (12 L/min.)
25 Models
All hydraulic fluids, plain water or DI, solvents, mild chemicals, liquefied gases

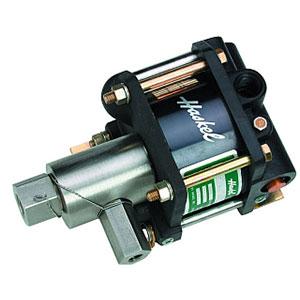

3/4 HP Air Driven Liquid Pump

3/4 HP

Pressures to 15,000 psi
Flow rates to 2-4 gpm (9.0 L/min.)
9 Models
Hydraulic fluids: petroleum base, HWCF & 95/5, plain water, liquefied gases

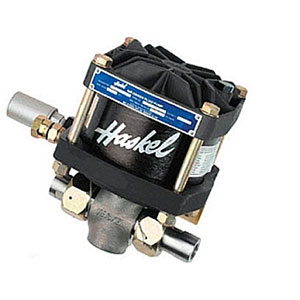

1.5 HP Air Driven Liquid Pump

1.5 HP

Pressures to 50,000 psi
Flows to 22 gpm (83.0 L/min)
11 Models
Choice of wetted materials

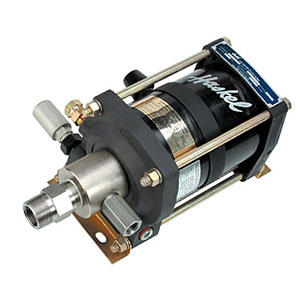

2 HP Air Driven Liquid Pump

2 HP

Pressures to 100,000 psi
Flows to 5 gpm (15.0 L/min)
13 Models
Double and triple air heads

2.2 HP Air Driven Liquid Pump

2.2 HP

Pressures to 100,000 psi
Flows to 5 gpm (15.0 L/min)
4 Models
Double and triple air heads

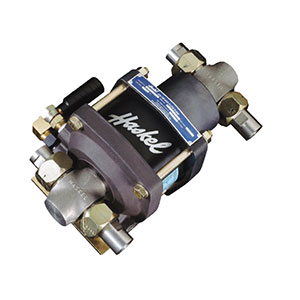

3 HP Air Driven Liquid Pump

3 HP

Pressures to 15,000 psi
Flows to 8 gpm (30.0 L/min)
7 Models
Hydraulic fluids: petroleum base, HWCF & 95/5, plain water

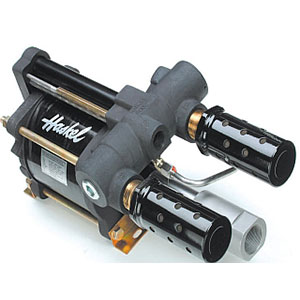

6 HP Air Driven Liquid Pump

6 HP

Pressures to 10,000 psi
Flow rates to 15 gpm (56 L/min.)
20 Models
All hydraulic fluids, plain water or DI, solvents

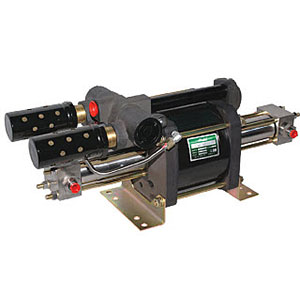

8 HP Air Driven Liquid Pump

8 HP

Pressures to 22,500 psi
Flow rates to 12 gpm (45 L/min.)
9 Models
All hydraulic fluids, plain water or DI, solvents

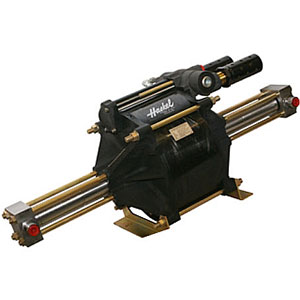

10 HP Air Driven Liquid Pump

10 HP

Pressures to 36,000 psi
Flow rates to 3 gpm (12 L/min.)
2 Models
All hydraulic fluids, plain water or DI, solvents

Haskel Liquid Pump

We're happy to help.

We can help size an amplifier, rebuild a pump, or engineer a custom pressure system.
